Product Details:
Payment & Shipping Terms:
|
| Material: | Mullite | Bulk Density: | ≥1.5g/cm3 |
|---|---|---|---|
| AL2O3 Content: | ≥50% | Refractoriness: | 1750℃ |
| Package: | 25kg Bags | Application: | Industrial Furnace Lining |
| High Light: | alumina silicate refractory brick,furnace refractory bricks |
||

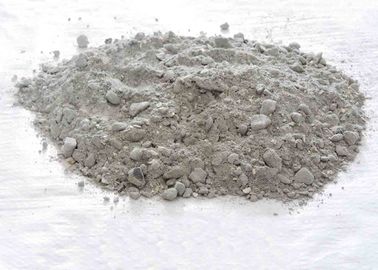

1.5g/cm3 Soft Mullite Castable Refractory high temperature strength for Industrial furnace lining
Mullite castable Refractory takes high quality porous mullite aggregate as raw material, plus a fine powder and additives. It is mainly used in boiler, blast furnace, hot blast stove, heating furnace, ceramic furnace and other furnace lining.
As the product takes high grade synthetic materials and combines with low cement or micro powder and used in high temp parts, so should select excellent pure calcium aluminate cement and its general control in 5%-10%, too much will reduce the product high temperature strength and anti-spalling strength.
Mullite castable Refractory with characters of:
1, Good high temperature performance, the service temperature is 1350℃ that can contact flame directly as furnace lining.
2, As its little volume density and low thermal conductivity, the product has excellent thermal insulation performance.
3, High mechanical strength, good thermal shock resistance and good abrasion resistance.
4, Construction rapidly which can shorten the oven time to get significant economic benefits.
|
Mullite castable |
Al2O3 (%,Min) |
Refractoriness (℃,Min) |
Bulk density (g/cm3,Min) |
C.C.S (MPa, Min) | P.L.C (%) |
Thermal conductivity (500℃,w/m.k) |
|
|
110℃*24h dry off |
1000℃*3h burned |
1000℃*3h burned |
|||||
| JD-1.8 | 55 | 1790 | 1.8 | 12 | 20 | -0.5~0 | 0.45 |
| JD-1.5 | 50 | 1750 | 1.5 | 12 | 15 | -0.5~0 | 0.40 |
| Remark | ISO Certificated; Customized | ||||||
| Application | Cement rotary kiln | ||||||
