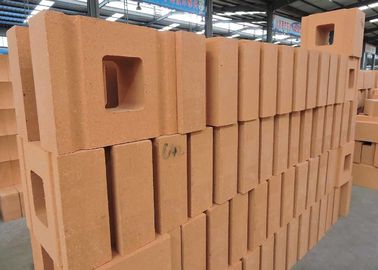

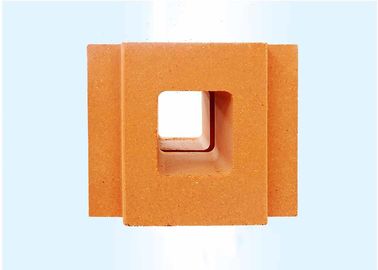

SK 32 Red Fire Clay Bricks For Kiln Lining Shock Resistance , CE Certificate

China Jundao (Henan) New Materials Co.,Ltd. certification
China Jundao (Henan) New Materials Co.,Ltd. certification
I'm Online Chat Now

SK 32 Red Fire Clay Bricks For Kiln Lining Shock Resistance , CE Certificate

SK 32 Red Fire Clay Bricks For Kiln Lining Shock Resistance , CE Certificate
SK 32 Red Fire Clay Bricks For Kiln Lining Shock Resistance , CE Certificate SK 32 Red Fire Clay Bricks For Kiln Lining Shock Resistance , CE Certificate

Large Image :  SK 32 Red Fire Clay Bricks For Kiln Lining Shock Resistance , CE Certificate

Product Details:

Place of Origin: Henan China
Brand Name: Jundao(Henan)
Certification: ISO9001:2015
Model Number: Fire Clay kiln brick

Payment & Shipping Terms:

Minimum Order Quantity: 20
Price: Negotiate
Packaging Details: Fumigated wooden pallet, plastic or steel bandages strapped and the whole outside is wrapped with thermoplastic film.
Payment Terms: MoneyGram, L/C, T/T, Western Union
Supply Ability: 4500Ton/mon
Detailed Product Description
Material: Fire Clay Color: Red
Size: 230*114*65mm Or Customized Application: Kiln Lining
AL2O3 Content(%): 30~48 Certificate: ISO9001
High Light:

fire rated bricks

,

refractory fire bricks

SK 32 Red Fire Clay kiln brick customized refactory brick for kiln lining



Fireclay kiln bricks are one of the main varieties of aluminum silicate products. They are refractory products with 30% to 48% AL2O3 content made of clay clinker as aggregate and refractory soft clay as binding agent.
The properties of Fireclay FireProof bricks fluctuate within a wide range. This is due to the fact that the chemical composition of the products fluctuates in a very wide range (fluctuations in the AL2O3 content range from 30% to 48%) and the differences in production processes. The refractoriness fluctuates from 1580°C to 1700°C;



Fireclay Kiln bricks features:

Have good thermal shock resistance,

Large fluctuation range, generally more than 10 times (water cooling at 1100°C);

Coefficient of linear expansion of clay products; average line expansion between 20°C and 1300°C The         coefficient is (4.5-5.8)×10-6°C-1.
The fireclay fireproof material is a weakly acidic refractory product and its acidity increases as the SiO2         content increases.

It has a certain erosion resistance to the acid slag, and poor resistance to alkaline slag erosion.                    Therefore, fireclay fireproof products should be used as lining for acid slag furnaces.



Item

Index



Fireclay Fireproof brick



N-1 N-2a N-2b N-3a N-3b
Al2O3% 30%~48%
0.2Mpa refractoriness under load ℃ ≥ 1400 1350 / 1320 /
Reheat linear change %

1400℃X2h



1350℃X2h

-0.4~0.1



-0.5~0.1 -0.5~0.2 -0.5~0.2 -0.5~0.2

Apparent porosity % ≤



22 24 26 24 26

Cold crushing strength MPa ≥



50 45 45 40 40





SK 32 Red Fire Clay Bricks For Kiln Lining Shock Resistance , CE Certificate 0
