| Material: | Clay Bonded | Bulk Density: | ≥2.2g/cm3 |
|---|---|---|---|
| Performance: | High Strength | Application: | Thermal Equipment |
| Package: | 25kg Bags | Certificate: | ISO9001 |
| High Light: | boiler refractory material,castable refractory material |
||

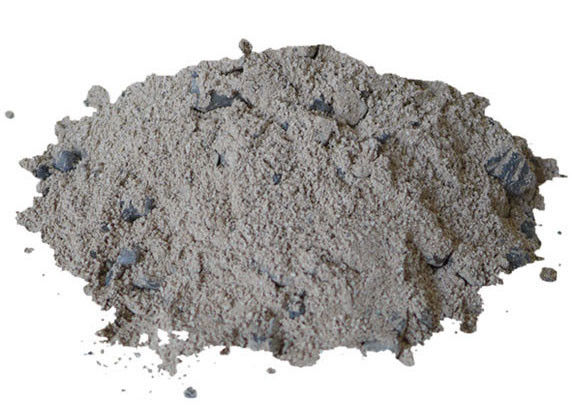

High strength Dense Clay bonded Refractory Castable
Clay bonded refractory castable is using soft clay as binder, with bauxite clinker, clay clinker or corundum, mullite refractory aggregate and pouring refractory powder and other admixture. According to the type of refractory aggregate and powder used, Clay bonded refractory castable can be divided into clay, high aluminum, corundum, mullite, light aluminum. The choice of soft clay binder requires good plasticity, good dispersion, good adhesion, wide sintering temperature range and high refractoriness.
Compared with cement bonded refractory castable, clay bonded refractory castable has the characteristics of moderate temperature strength, thermal strength, good volume stability at high temperature, good thermal shock resistance, and good spalling resistance.
Clay bonded refractory castable is mainly used in blast furnace, equalizing furnace, heating furnace and other thermal equipment.
| Item | Common Clay bonded refractory castable | High strength Clay bonded refractory castable | |||
|
Working temp ℃
|
1350 | 1400 | 1450 | 1500 | |
|
Al2O3 % ≥
|
42-55 | 55-62 | 60-66 | 62-76 | |
|
Bulk density g/cm3 ≥
|
2.20-2.30 | 2.25-2.30 | 2.30-2.40 | 2.35-2.45 | |
| Cold crushing strength MPa |
1000℃*3h
|
4-6 | 5-7 | 8-12 | 8-12 |
|
1400℃*3h
|
7-9 | 7-12 | 10-17 | 10-12 | |
|
Bending strength MPa |
1000℃*3h
|
4-6 | 6-8 | 8-10 | 8-10 |
|
1400℃*3h
|
0.3-0.6 | 0.5-1.0 | 0.8-1.3 | 1.2-1.5 | |
|
Thermal Conductivity W/mk ＞
|
0.6 | 0.6 | 0.7 | 0.7 | |
|
P.L.C 1400℃*3h %
|
0~0.7 | 0~0.8 | 0~0.4 | 0~0.1 | |
|
R.U.L ℃ ＞
|
1480 | 1500 | 1530 | 1530 | |
