Product Details:
Payment & Shipping Terms:
|
| Material: | Fire Clay | AL2O3 Content: | ≥58% |
|---|---|---|---|
| Bulk Density: | 2.45g/cm3 | Size: | Customized |
| Application: | Carbon Baking Furnace | Certificate: | ISO9001 |
| High Light: | fire rated bricks,refractory fire bricks |
||

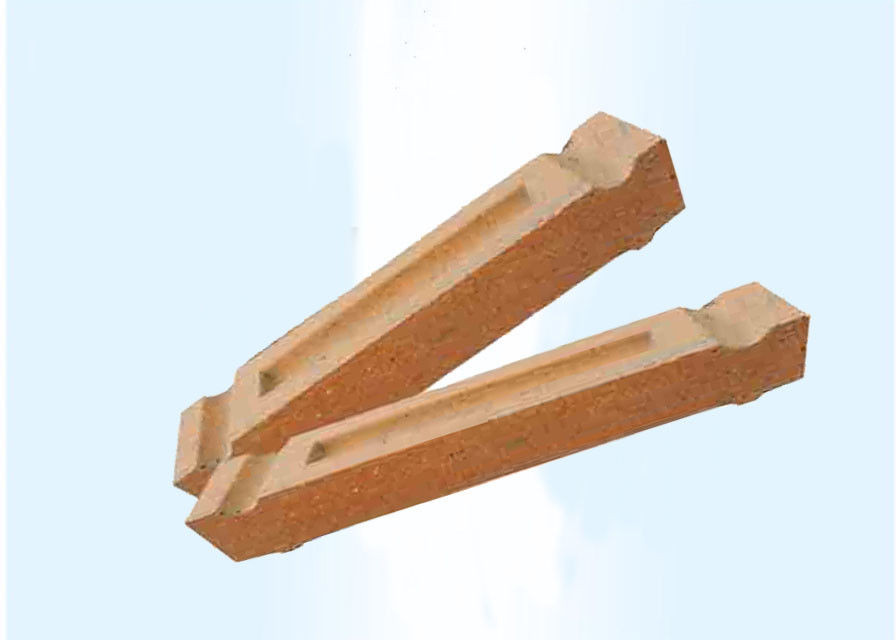

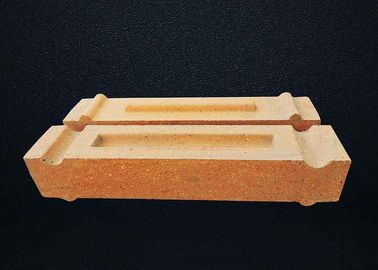

2.45g/cm3 Dense and heavy Fire Clay brick for Carbon Baking furnace fire wall brick
Fire Clay Refractory Bricks provided by us refered to a kind of refractory products with the Al2O3 content between 30%~48%. 2.45g/cm3 dense and heavy fireclay refractory brick used in baking furnace fire wall Al2O3 content can reach 58%, which is taking high quality hard clay clinker as main raw material and combined with clay. Fire Clay Bricks made by Jundao have been exported to all over the world.
Fire Clay Refractory Bricks Features:
High strength
High refractoriness under load
Good resistance to chemical erosion
| Items |
Al2O3 (%,Min) |
Fe2O3 (%,Max) |
B.D (g/cm3,Min) |
A.P (%) |
C.C.S (Mpa,Min) |
R.U.L Min,℃) |
Thermal Expansion (20℃~1000℃,%,Max) |
Bending Strength (1350℃,Mpa,Min) |
|
Fireclay Refractory Brick |
58 | 1.2 | 2.45 | 12-18 | 75 | 1600 | 0.7 | 6 |
|
Remark
|
ISO Certificated, Customized | |||||||
| Application |
Firewall of carbon baking furnace |
|||||||
How to choose firebricks?
★First, it depends on your kiln.
The kiln can be divided into new masonry kiln and old kiln maintenance masonry. If the new one, we should know which parts,using temperature, special environment (acid alkali, high pressure,impact, wear and so on) of the firebricks to be used? Then choose the most suitable firebricks. If maintenance for old kiln , it can be based on experiences use of firebricks before, considering whether to use another materials instead, or improving and enhance the firebricks index.
★Secondly,the proportion of the standard brick and special brick is determined.
For example, standard brick is easy to purchase. If the special brick, needs customized mold and mass production, it’s a high accurate require to the mold, also express richness and technological experiences of the factory.
