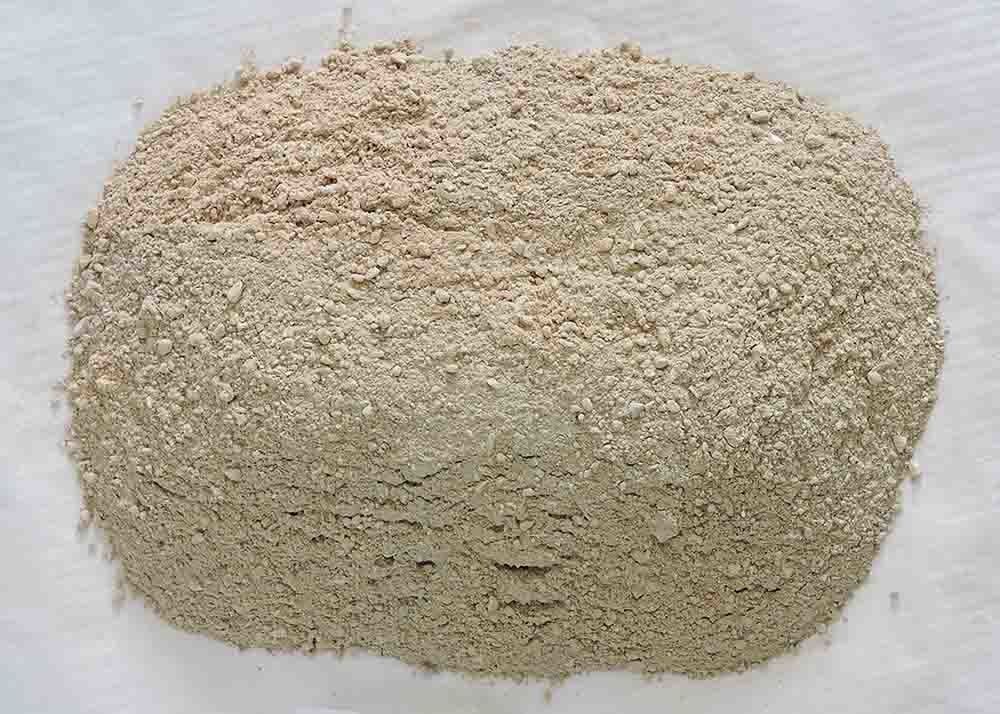

Alumina Silicate Insulating Castable Refractory Cement For Electrolytic Cell

China Jundao (Henan) New Materials Co.,Ltd. certification
China Jundao (Henan) New Materials Co.,Ltd. certification
I'm Online Chat Now

Alumina Silicate Insulating Castable Refractory Cement For Electrolytic Cell

Alumina Silicate Insulating Castable Refractory Cement  For Electrolytic Cell
Alumina Silicate Insulating Castable Refractory Cement  For Electrolytic Cell

Large Image :  Alumina Silicate Insulating Castable Refractory Cement For Electrolytic Cell

Product Details:

Place of Origin: Henan China
Brand Name: Jundao(Henan)
Certification: ISO9001:2015
Model Number: Leakage resistant Castable Refractory

Payment & Shipping Terms:

Minimum Order Quantity: 20
Price: Negotiate
Packaging Details: Ton bag with rain film and 25kg small bags inside or as customers' requirements
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 3500Ton/mon
Detailed Product Description
AL2O3 Content(%): 18-25 SiO2 Content(%): 55-75
Performance: Leakage Resistant Package: 25kg Bags
Application: Electrolytic Cell Certificate: ISO9001
High Light:

kiln lining materials

,

castable refractory material

Alumina Silicate Dry barrier mix For Electrolytic Cell Leakage Resistant Castable Refractory



Leakage Resistant castable Refractory is mainly used in the bottom of electrolytic cell, the lower part of the cathode magnet. The product can strengthen the thermal insulation capacity of the bottom of the cell, reduce the heat loss of the bottom of the cell, increase the temperature of the cathode carbon block itself, and reduce the temperature gradient between the bottom and the top of the cathode carbon block.


Leakage Resistant castable Refractory Features:

1, High leakage resistance, it can react with the electrolyte that leaks along the cracks of the cathode             magnet, and produce a high viscosity liquid phase which can effectively prevent further leakage.

2, Convenient construction that improve working efficiency.

3, Low themal conductivity which can reduce the heat loss of the bottom of the cell.



Item Al2O3 SiO2

Compacted

Density
(g/cm3)

Refractoriness

Thermal Conductivity

Max, W/m·k

Leakage resistant

castable

refractory

18~25 55~75 1.95~2.05 1650~1690℃ 200℃ 400℃ 600℃ 815℃
0.30 0.32 0.39 0.45
Application Mainly used in the bottom of electrolytic cell, the lower part of the cathode magnet
Remark ISO Certificated; Customized
