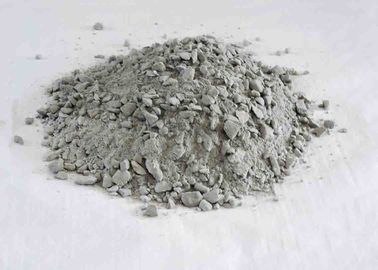

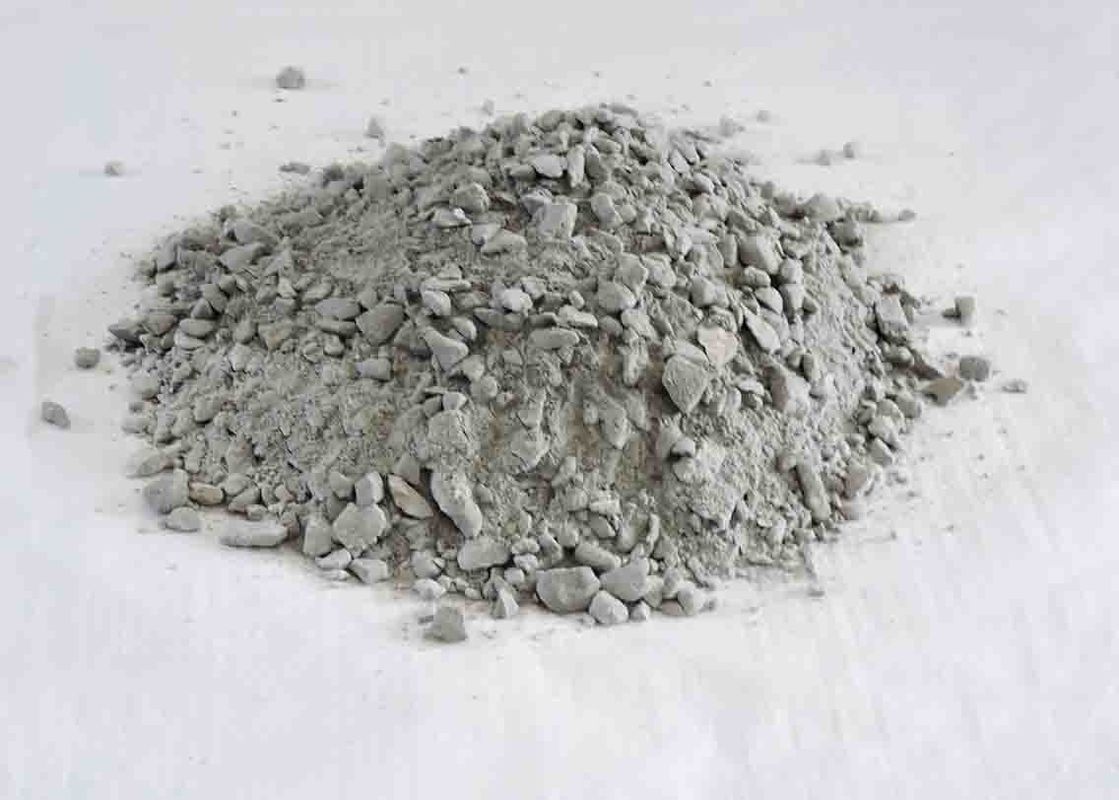

85% Al2O3 Castable Refractory Concrete / Anti Wear Castable Refractory Mix

85% Al2O3 Castable Refractory Concrete / Anti Wear Castable Refractory Mix
85% Al2O3 Castable Refractory Concrete / Anti Wear Castable Refractory Mix

Large Image :  85% Al2O3 Castable Refractory Concrete / Anti Wear Castable Refractory Mix

Product Details:

Place of Origin: Henan China
Brand Name: Jundao(Henan)
Certification: ISO9001:2015
Model Number: Corundum Anti-wear Castable

Payment & Shipping Terms:

Minimum Order Quantity: 20
Price: Negotiate
Packaging Details: Ton bag with rain film and 25kg small bags inside or as customers' requirements
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 3000Ton/mon
Detailed Product Description
AL2O3 Content: ≥85% SiO2 Content: ≤13%
Bulk Density: ≥2.90g/cm3 C.C.S: ≥110MPa
Performance: Anti-wear Self-flow Usage: CFB Boiler
High Light:

boiler refractory material

,

castable refractory material

85% Al2O3 Corundum Castable Refractory Anti-wear Self-flow dense Castable for

CFB boiler



Corundum Anti-wear self-flow castable produced by us uses corundum aggregates as the main material, added with various of admixture and high efficiency watering reducing agents, liquid agents to enhance the flowing property. In the construction process, mixing dry material and additive (admixture, adhesive) by the mixer for 1-3 minutes, then stirring with water (the water content: about 5.5%, Ph6-8).



Corundum Anti-wear self-flow castable main characters:

1, In the case of not increasing water consumption, the product can flow only depends on the self-weight and potential energy difference,

2, In the state of non-vibration, the construction can be done in the places of clamps and unshakeable areas, which has a good quality of construction.

3, The product with high wear-resistance, high-temp resistance, strong impact, high thermal shock resisatanc, good self-flow property.



Corundum Anti-wear self-flow castable Application:

Mainly used for the difficult construction, wearing and tearing badly parts of the lining of CFB boiler and other thermal equipment. Also widely used in metallurgical industry, non-ferrous metal industry, petro chemical industry, cement industry and building industry etc.



Item Index

Corundum self-flow

Castable-1

Corundum self-flow

Castable-2

Al2O3 % ≥ 80 85
SiO2 % ≥ 15 13
Bulk density g/cm3 2.80 2.90

Cold crushing strength

MPa ≥

          110℃*24h     85 90
815℃*3h  95 110
1100℃*3h 120 130

Bending strength

MPa ≥

110℃*24h 12 14
815℃*3h 14 15
1100℃*3h 16 17
Wear extent at normal temp ≤ 6.5 5
Resistance to thermal shock times 25 25
Flow value ≥ mm 200
