Product Details:
Payment & Shipping Terms:
|
| Color: | Red | Bulk Density: | ≥2.2g/cm3 |
|---|---|---|---|
| AL2O3 Content: | 42-53% | Fe2O3 Content: | ≤1.6% |
| Shape: | Heteromophic Brick | Performance: | Low Creep |
| High Light: | heat resistant bricks,refractory fire bricks |
||

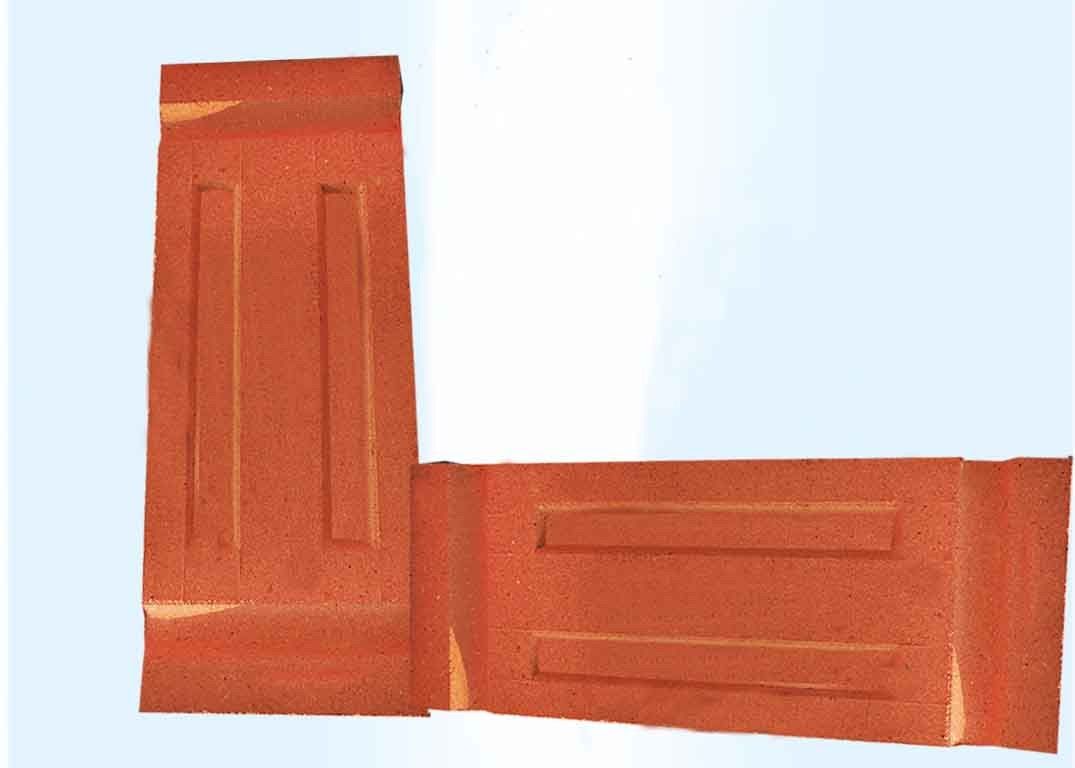

42-53% Al2O3 heavy and dense Fire Clay brick Red heteromophic brick Low creep for
Industrial furnaces
Fire Clay brick produced by us with 42-53% Al2O3 content, the brick shape is special designed according to furnace firewall which is new type of energy saving.
The special design of brick shape makes the bricks combined closely, thus enhancing the sealing of the wall and baking furnace insulation effect, reducing energy consumption, which has relized construction and installation mechanization, reducing labor intensity effectively.
This kind of fire clay brick with characters of:
Low creep
High cold crushing strength
Good salg resistance
Long service time, volume stability
Low thermal expansion
Strong ability to withstand high temp load over a long period of time
Fire Clay brick are widely used in carbon baking furnace fire wall other high temp furnaces.
| Item | Al2O3 (%) |
Fe2O3 (%,Max) |
B.D (g/cm3,Min) |
A.P (%,Max) |
C.C.S (MPa,Min) |
°C,Min) |
2kg/cm2, Max,%) |
|
Fire Clay Brick |
42~53 | 1.6 | 2.2 | 12~18 | 70 | 1480 | 0.35 |
| Remark | ISO Certificated; Customized | ||||||
