Material: | Fireclay | Color: | Red |
---|---|---|---|
Size: | Standard Or Customized | Bulk Density: | 0.8g/cm3 |
Performance: | Heat Insulation | Certificate: | ISO9001 |
Highlight: | boiler refractory material,castable refractory material |

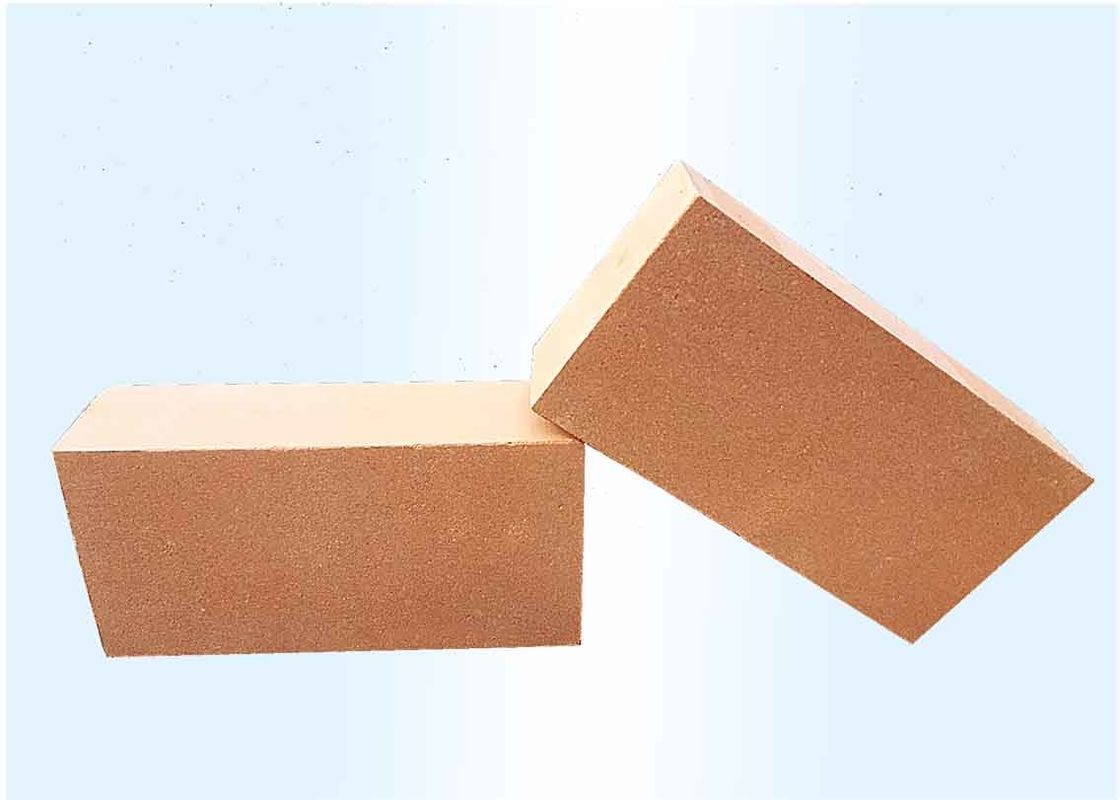

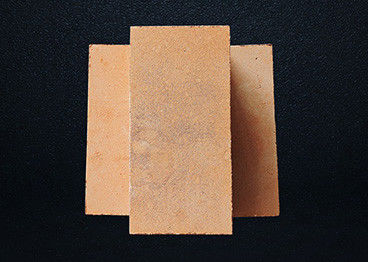

230*114*65mm Standard Clay Refractory Insulation brick 0.8g/cm3 Light weight heat insulation brick
Fire Clay Refractory Insulation brick provided by us taking high quality hard clay clinker as main raw material and combined with clay. With characters of small volume density, lightweight that easy to construct, low thermal expansivity to reduce heat loss, good resistance to chemical erosion etc. Mainly used in glass furnace, cement kiln, blsat furnace, hot blast stove, electrolytic cell, baking furnace and other industrial thermal equipment.
Fire Clay Refractory Insulation brick is widely used, which is mainly used in a variety of industrial kilns that does not contact the melt and no erosion gas insulation layer material, and the working temperature 900~1000℃. The product has been exported to all over the world.
Fire clay refractory insulation Brick |
B.D(g/cm3,Min) | C.C.S(Mpa,Min) |
Thermal Conductivity (W/m·k,Max,350℃) |
Tworking Temp (Min,℃) |
NG-0.8 | 0.8 | 1.0 | 0.18 | 950 |
NG-0.6 | 0.6 | 2.0 | 0.17 | 900 |
Remark | ISO Certificated; Customized |
